TABLESS BATTERY TECHNOLOGY
EVEN MORE POWER FOR GARDENING AND LANDSCAPING, FARMING, FORESTRY AND CONSTRUCTION
Long lasting maximum performance for long term use: discover the battery in the ALLPRO performance series with innovative tabless cells.
- What are tabless cells? In tabless design, the battery cells are connected across their entire surface rather than via a narrow tab.
- How do tabless cells work? The full surface flags reduce the internal resistance within the cell, allowing energy to flow more easily. This reduces heat development and maximises power flow during charging and discharging.
- Advantages of STIHL batteries with tabless design: IPX5 protection, Smart Control, battery cooling and cold start function.
- STIHL batteries with tabless cells at a glance: The ALLPRO Performance series offers you the right battery set-up for every professional application: AP 100.0 P, AP 200.0 P, AP 300.0p(C).
- Compatibility of batteries with tabless design: STIHL batteries with tabless cells are compatible with all chargers and battery power tools from the previous AP system as well as STIHL approved third party power tools.
STIHL ALLPRO: THE NEXT MILESTONE FOR EVEN MORE BATTERY POWER
For decades, STIHL has stood for uncompromising quality in innovations and technologies that make your everyday work noticeably easier: in farming, forestry, gardening and landscaping, on contruction sites or in demanding domestic projects. With the STIHL ALLPRO battery system, we offer you exactly the right eneregy source for every task.

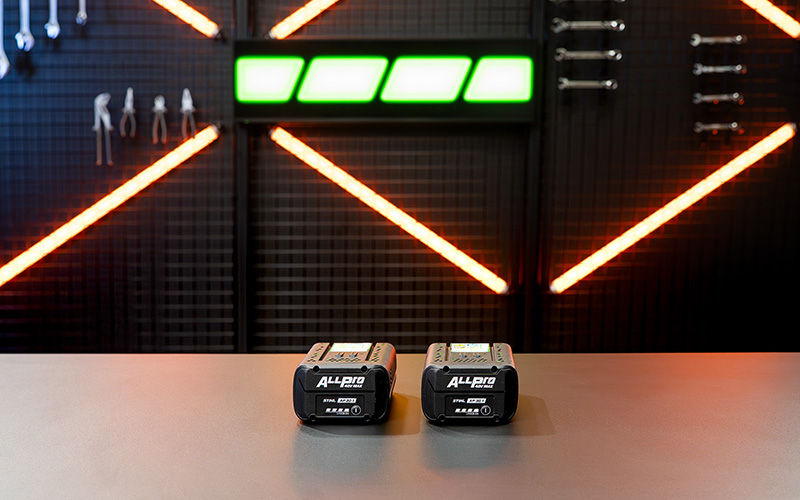

ALLPRO standard series
The AP 20.1 and AP 30.1 batteries are based on modern lithium-ion cells and are ideal for ambitious domestic projects and for affordable entry into the ALLPRO system.

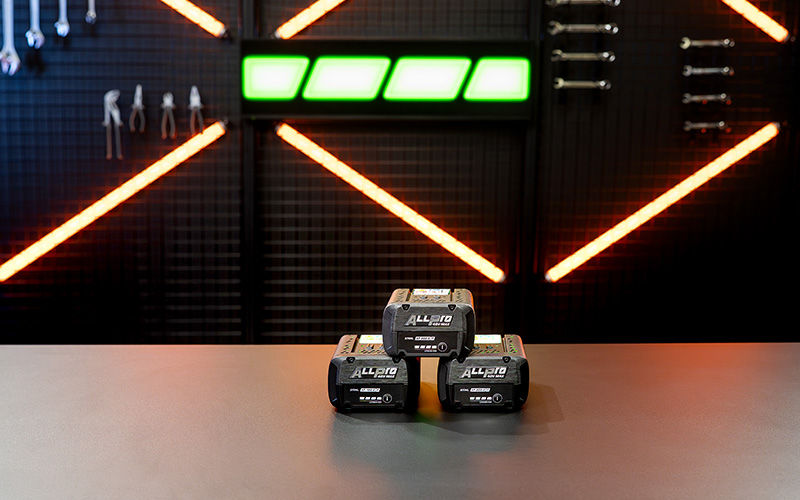

ALLPRO performance series
The AP 100.0 P, AP 200.0 P, and AP 300.0 P(C) lithium-ion batteries with tabless cells are designed for all day requirements with high peak loads.
WHAT ARE TABLESS CELLS?
Tabless battery cells are the next generation of lithium-ion technology. The new cell design eliminates the physical bottleneck of conventional cells. Instead of conducting the current through a single, narrow contact tab, tabless cells use flags over the entire surface for the energy flow.

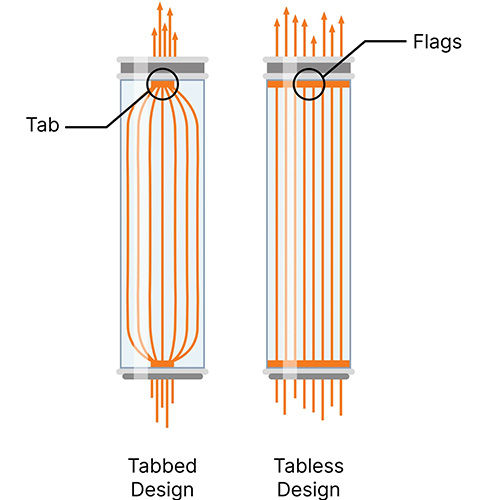

What distinguishes a battery with tabless cells from a conventional lithium-ion battery?
Conventional lithium-ion battery: The current in the battery cell is emitted via a narrow contact tab. This tab acts like a bottleneck, which slows down the current and at the same time generates heat.
Batteries with tabless cells: The energy of the battery cell is rleased via countless flags. As a result, the number of contact points is distributed over the entire cell surface and the energy can flow through almost unhindered. This leads to more efficient current deliery from the inside out, both when charging and discharging.
POWER, CHARGING TIME, SERVICE LIFE: THESE ARE THE BENEFITS OF TABLESS CELLS

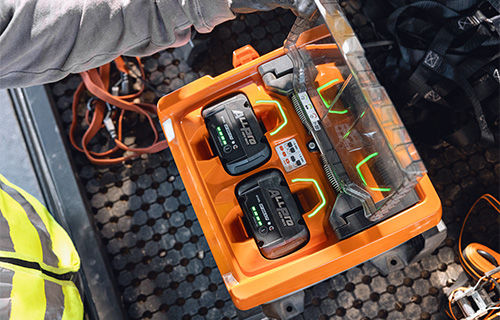

Charge to 80% in nine minutes
The many flags in the tabless cell increase the surface area and enable a higher energy flow. As the low internal resistance hardly generates any heat, there are no cooling times before charging. The AL 1802 MO charger, for example, brings your AP 300.0 P(C) back to 80% in just nine minutes.

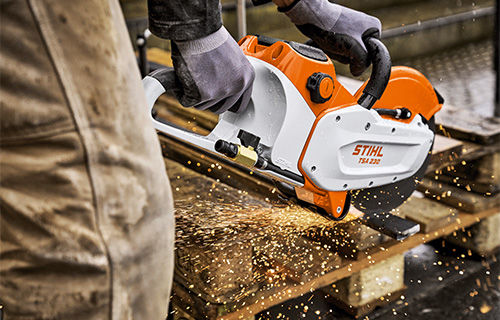

Up to 60% more power
Unlike conventional batteries, the energy flows freely through the tabless cells, giving you up to 60% more peak performance. This means that even in continuous application and high perfromance work, your power tool will last without compromise and without performance drops.
Over 3,000 charge cycles
Heat is the greatest enemy of any battery and the main cause of wear. The tabless design reduces heat development and protects cell chemistry. This doubles the service life of the ALLPRO batteries in the performance series to up to 3,000 charge cycles3. And even afterwards, you can use your battery for lighter jobs.
ALLPRO was developed for professionals in tree maintenance, gardening and landscaping to support their everyday work.

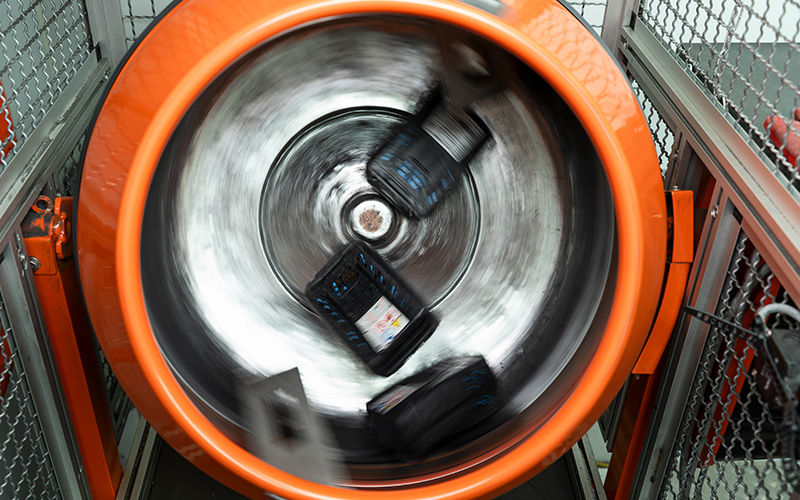

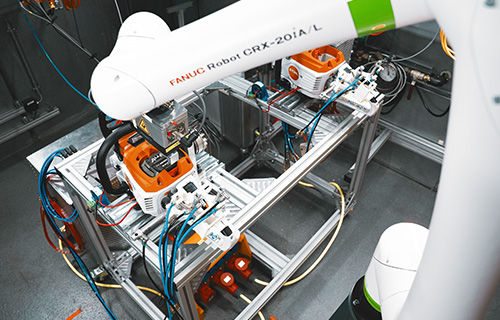

From impact and moisture tests to continuous operation, STIHL batteries must prove their reliability and performance in the test laboratory. To do so, they undergo rigorous drop, drum and insertion cycle tests. Thanks to their robust design, they can withstand drop heights of up to 1.5 metres and the cell technology is reliably protected against loss of function. But the most important test takes place outside: across the world, professional companies test the batteries under real-life conditions in their daily work. The result? An absolutely robust system designed for everyday challenges. No matter how tough the job gets: your ALLPRO battery system is ready.
More charge cycles, more power, -20°C to +50°C, IPX5.
These advantages are proven in complex testing procedures. Find out how we put the ALLPRO batteries through their paces and accompany us directly into dvelopment.
INTELLIGENT, STRONG, ENDURING: HOW TABLESS CELLS IMPROVE YOUR WORKFLOW
The ALLPRO system makes your daily work easier. Whether in rainy weather, under high time pressure or in extreme applications, STIHL batteries with tabless cells offer a range of features for precisely this purpose.
 |
IPX5 protection Enables weather proof work
|
 |
Battery cooling function Heat protection during charging Specifically directed air actively cools the cells of your battery during charging. The thermally networked cells dissipate heat evenly. The battery cooling feature prevents hot spots, protects against overheating and ensures the longevity of your battery. |
 |
Cold start function Ready to start at any temperature Conventional batteries often need time to warm up for use in extreme cold. With the cold start function, you don't have to make any compromises in winter: Even in freezing conditions of -20 °C, your power tool is ready to go at the touch of a button and delivers almost the same performance as it does in ideal temperatures. |
 |
Smart Control function Exactly the energy your projects needs The battery, power tool and charger communicate continuously with each other via Smart Control. The power tool tells you how much power it needs and delivers exactly that. If there is a risk of overheating, the power is automatically adjusted so that you can finish your work safely in most instances. In addition, the intelligent electronics protect against deep discharge and overload - and also reliably protect your older AP power tools from excessive start-up currents. |
IPX5 protection
Enables weather proof work
The sealing of each individual tabless cell and the fully enclosed electronics ensure IPX5 protection against water jets from all directions, so work continues no matter the weather.
Smart Control function
Exactly the energy your projects needs
The battery, power tool and charger communicate continuously with each other via Smart Control. The power tool tells you how much power it needs and delivers exactly that. If there is a risk of overheating, the power is automatically adjusted so that you can finish your work safely in most instances. In addition, the intelligent electronics protect against deep discharge and overload - and also reliably protect your older AP power tools from excessive start-up currents.
Battery cooling function
Heat protection during charging
Specifically directed air actively cools the cells of your battery during charging. The thermally networked cells dissipate heat evenly. The battery cooling feature prevents hot spots, protects against overheating and ensures the longevity of your battery.
Cold start function
Ready to start at any temperature
Conventional batteries often need time to warm up for use in extreme cold. With the cold start function, you don't have to make any compromises in winter: Even in freezing conditions of -20 °C, your power tool is ready to go at the touch of a button and delivers almost the same performance as it does in ideal temperatures.
THE STIHL ALLPRO BATTERY SYSTEM: PERFORMANCE WITH TABLESS DESIGN
Whether blowing leaves in a noise sensitive areas, tree maintenance or working on a construction site, STIHL tabless batteries charges faster, delivers more power and lasts longer.
STIHL tabless technology: Performance data overview
| AP 100.0 P | AP 200.0 P | AP 300.0 P(C) | |
| Weight | 0.9 kg | 1.4 kg | 1.9 kg |
| Energy | 111 Wh | 222 Wh | 333 Wh |
| Charging time | 9 min / 80% | 9 min / 80% | 9 min / 80% |
| Charge cycles | >3,000 | >3,000 | >3,000 |
| Operating temperature | -20°C to +50°C | -20°C to +50°C | -20°C to +50°C |

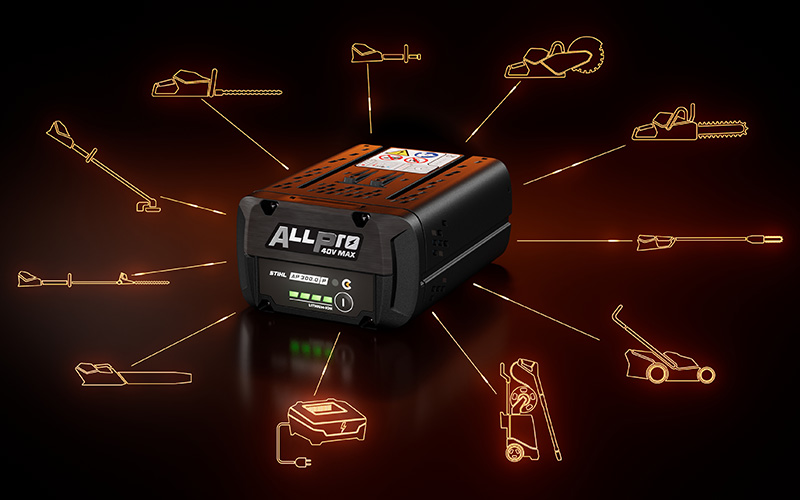

STIHL batteries with tabless cells from the ALLPRO system are compatible with all STIHL battery power tools and chargers from the AP system. In addition, the batteries with tabless design also fit in STIHL approved third-party power tools.
IMPORTANT QUESTIONS ABOUT STIHL TABLESS TECHNOLOGY
What is the difference between normal batteries and tabless cell batteries?
The biggest difference lies in the type of current transmission within the battery cell. Whereas conventional lithium-ion batteries conduct the current via a narrow tab, tabless technology uses the entire surface area for unobstructed energy flow.
-
Tabbed cells: the current must pass through the tab, a single metal strip. This leads to a higher resistance under high load and thus to strong heat development and power loss.
-
Tabless cells: The metal foils are directly connected over the entire length. The current flows over a large area, which significantly reduces the internal resistance.
How long will a battery with a tabless design last?
The ALLPRO performance series is designed to have a very long service life. With up to 3,000 charge cycles * without any significant loss of performance, you invest in technology that will accompany you reliably for many years to come.
* Up to 3,000 charge cycles without noticeable deterioration. Still useable beyond this point. Only valid for ALLPRO AP 100.0 P, AP 200.0 P and AP 300.0 P(C).
Can I use a tabless cell battery with my existing power tools?
The batteries with tabless cells, the ALLPRO performance series, consisting of AP 100.0 P, AP 200.0 P and AP 300.0 P(C) are fully compatible with all STIHL power tools and chargers from the previous AP system.
Do I need a special charger for a battery with tabless design?
No, you can charge ALLPRO batteries with tabless cells with all STIHL chargers from the AP system. The AL 1802 MO charger, for example, brings your AP 300.0 P(C) back to 80% in just nine minutes*.
* Time to charge up to 80% at ambient or pack temperatures of 25–40 °C in combination with AL 1802 MO. Only valid for ALLPRO batteries AP 100.0 P, AP 200.0 P and AP 300.0 P(C).
Is there an increased risk of fire due to the high performance of the tabless cells ?
No, quite the opposite. The tabless design is specifically designed to reduce heat development, as heat is the greatest stress factor for any battery cell.
-
As the current flows through many contact points, hardly any accumulated heat is generated.
-
All cells are thermally networked and are actively cooled by the battery cooling feature, which consistently prevents critical hot spots inside.
-
The Smart Control function protects the battery from overload and deep discharge at all times.
