The ALLPRO battery system is the new generation of STIHL batteries for professional use and the further development of previous AP batteries. It includes five batteries in two series: The standard series (AP 20 and AP 30) is based on tried-and-tested lithium-ion cells and is an inexpensive entry into the system. The performance series (AP 100 P, AP 200 P and AP 300 P) relies on tabless cell technology for more peak performance, fast charging and a particularly long service life. The central advantages of the AP system are retained: all ALLPRO batteries are fully compatible with over 60 power tools.
NEXT LEVEL POWER. FEEL THE STRENGTH. ALL DAY LONG.
The ALLPRO battery system is engineered specifically for the needs of professionals who rely on exceptional performance, maximum efficiency and long lasting battery power in their daily work.
THE NEW STIHL ALLPRO BATTERY SYSTEM
COMING SOON!
CHARGED WITH NEXT LEVEL POWER
For unprecedented power and unstoppable efficiency, engineered to conquer the elements and designed for every mission and thousands ahead. This is the new STIHL ALLPRO Battery System, fully compatible with AP tools. It‘s time to level up your gear for the next level of battery power.
NEXT LEVEL PEAK
More power, all day long
The ALLPRO Battery System sets new benchmarks for performance. Thanks to it's innovative tabless cell tehnology, you work with consistenly higher power¹ at every state of charge, ensuring maximum effeciency, even in the most demanding applications.
(1) Comparison with AP 300.0 P(C) and AP 300 S.
NEXT LEVEL PEAK
More power, all day long
The ALLPRO Battery System sets new benchmarks for performance. Thanks to it's innovative tabless cell tehnology, you work with consistenly higher power¹ at every state of charge, ensuring maximum effeciency, even in the most demanding applications.
(1) Comparison with AP 300.0 P(C) and AP 300 S.
NEXT LEVEL RELOADED
Fast charging in just 9 minutes for maximum readiness
ALLPRO's advanced tabless cell technology and intelligent charging profiles deliver incredibly fast charging, with compatible batteries reaching 80% charge in as little as 9 minutes using the AL 1802 MO charger. With less time spent waiting and more time working, you can maximise productivity throughout the day. Applies to AP 100.0 P, AP 200.0 P and AP 300.0 P batteries charged at 25 to 40°C.
NEXT LEVEL RELOADED
Fast charging in just 9 minutes for maximum readiness
ALLPRO's advanced tabless cell technology and intelligent charging profiles deliver incredibly fast charging, with compatible batteries reaching 80% charge in as little as 9 minutes using the AL 1802 MO charger. With less time spent waiting and more time working, you can maximise productivity throughout the day. Applies to AP 100.0 P, AP 200.0 P and AP 300.0 P batteries charged at 25 to 40°C.
NEXT LEVEL ENDURING
Over 3,000 charging cycles for performance that lasts
Our intelligent charging system treats your ALLPRO batteries with exceptional care, the AP 100.0 P, AP 200.0 P and AP 300.0 P batteries will deliver consistent, reliable power for more than 3,000 charging cycles. This means lower replacement costs, greater planning confidence, and long-term value for your business.
NEXT LEVEL ENDURING
Over 3,000 charging cycles for performance that lasts
Our intelligent charging system treats your ALLPRO batteries with exceptional care, the AP 100.0 P, AP 200.0 P and AP 300.0 P batteries will deliver consistent, reliable power for more than 3,000 charging cycles. This means lower replacement costs, greater planning confidence, and long-term value for your business.
NEXT LEVEL RESISTANT
IPX5 protection for reliable operation in the rain
With IPMX5 certification, the ALLPRO batteries AP 100 P, AP 200 P and AP 300 P are specifically designed for use under the toughest conditions. Rain and moisture do not affect their functionality or performance. A power supply you can reply on when external conditions become a challenge.
The ALLPRO batteries AP 20.1 and AP 30.1 are IPX4-certified
NEXT LEVEL RESISTANT
IPX5 protection for reliable operation in the rain
With IPMX5 certification, the ALLPRO batteries AP 100 P, AP 200 P and AP 300 P are specifically designed for use under the toughest conditions. Rain and moisture do not affect their functionality or performance. A power supply you can reply on when external conditions become a challenge.
The ALLPRO batteries AP 20.1 and AP 30.1 are IPX4-certified
TABLESS CELL TECHNOLOGY: NEXT LEVEL BATTERY POWER
Traditional battery cells rely on small metal tabs to transfer energy, creating bottlenecks that restrict performance and generate heat.
Tabless cell technology changes the game. By allowing energy to flow evenly across the entire surface of the cell, it eliminates resistance and unlocks a new level of efficiency and power delivery. The result is faster energy transfer, higher output, and consistently reliable performance, even under demanding conditions.
MORE ABOUT TABLESS BATTERY TECHONOLOGY
Traditional battery cells rely on small metal tabs to transfer energy, creating bottlenecks that restrict performance and generate heat.
Tabless cell technology changes the game. By allowing energy to flow evenly across the entire surface of the cell, it eliminates resistance and unlocks a new level of efficiency and power delivery. The result is faster energy transfer, higher output, and consistently reliable performance, even under demanding conditions.
HIGHER POWER OUTPUT
Unrestricted current flow delivers stronger, more consitent performance for demanding tasks.
FASTER CHARGING
Efficient energy flow in both directions significantly reduces charging times and keeps work moving.
LONGER BATTERY LIFE
Lower heat generation protects the cells, reduces wear and extends overall battery life.
REAL FEEDBACK. REAL RESULTS. ALLPRO.
"The battery is super light. I was really surprised how light it was. The machine is well balanced and it's really manoeuvrable“
Head of Gardens and Grounds
"What I really like is being able to control the power output. I can use extra power where it's needed and conserve battery on lighter tasks. With a battery in the machine and a few charged spares on hand, I've got more than enough runtime to stay productive all morning.“
Landscaper
"The motor delivers plenty of torque for powerful cross-cutting, while remaining agile and easy to manoeuvre when delimbing. Combined with its lightweight design, it's comfortable to handle and helps reduce fatigue throughout the day“
Arborist
TWO SERIES, ONE SYSTEM: THE ALLPRO BATTERIES AT A GLANCE
ALLPRO PERFORMANCE SERIES
The ALLPRO AP 100 P, AP 200 P, and AP 300 P batteries with innovative tabless cells are designed for all daily requirements with high peak loads. An essential advantage is extremely fast charging: with the STIHL AL 1802 MO high-speed charger, the new tabless batteries are recharged to 80% in just nine minutes².

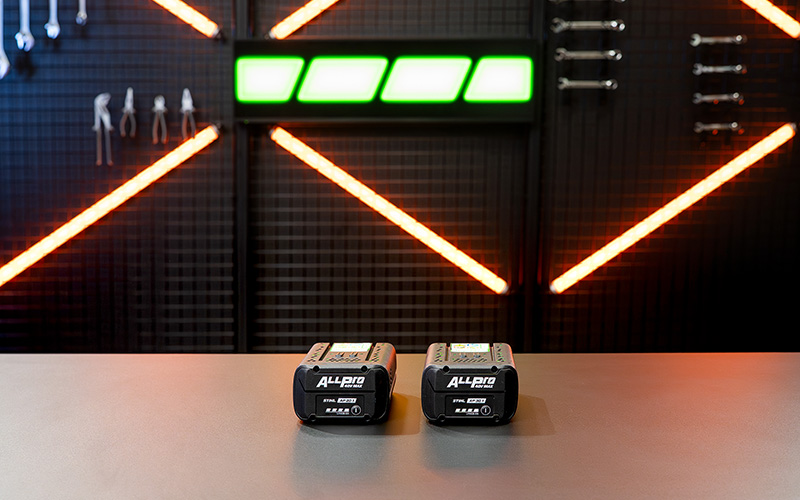

ALLPRO STANDARD SERIES
The AP 20 and AP 30 batteries are based on modern standard lithium-ion cells and offer a cheaper entry into the ALLPRO system. They are ideal for customers who value robust, high-performance batteries designed to meet the needs of professional users.
THE RIGHT PERFORMANCE FOR OPTIMAL RESULTS
With different weights and energy contents, pros can use the new tabless batteries for every application. For example, the AP 100 P (0.9 kg, 111 Wh) offers a weight advantage, especially in combination with hand-held power tools such as hedge trimmers or arborist saws . The AP 200 P (1.3 kg, 222 Wh) can be used as a classic all-rounder and the AP 300 P (1.9 kg, 333 Wh) is the most powerful model with the longest runtime in the ALLPRO system.
STIHL POWER FOR YOUR WORKDAY
STIHL POWER FOR YOUR WORKDAY
AP 300 P
AP 300 P
| Service life | Up to 3000 Charge Cycles |
| Weight (kg) | 1.9 kg |
| Energy capacity (wh) | 333 wh |
| Charging time (min) | To 80% in 9min |
| Service life | Weight (kg) |
| Up to 3000 Charge Cycles | 1.9 |
|
Energy capacity (wh) |
Charging time (min) |
| 333 | To 80% in 9 MIN |

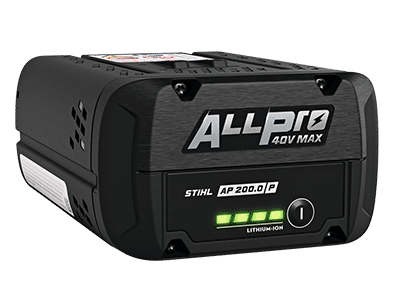

AP 200 P
AP 200 P
| Service life | Up to 3000 Charge Cycles |
| Weight (kg) | 1.4 kg |
| Energy capacity (wh) | 222 wh |
| Charging time (min) | To 80% in 9min |
| Service life | Weight (kg) |
| Up to 3000 Charge Cycles | 1.4 |
| Energy capacity (wh) | Charging time (min) |
| 222 | To 80% in 9min |
AP 100 P
AP 100 P
| Service life | Up to 3000 Charge Cycles |
| Weight (kg) | 0.9 kg |
| Energy capacity (wh) | 111 wh |
| Charging time (min) | To 80% in 9min |
| Service life | Weight (kg) |
| Up to 3000 Charge Cycles | 0.9 |
| Energy capacity (wh) | Charging time (min) |
| 111 | To 80% in 9min |
AP 30
AP 30
| Service life | Up to 1200 Charge Cycles |
| Weight (kg) | 1.8 kg |
| Energy capacity (wh) | 270 wh |
| Charging time (min) | To 80% in 30min |
| Service life | Weight (kg) |
| Up to 1200 Charge Cycles | 1.8 |
| Energy capacity (wh) | Charging time (min) |
| 270 | To 80% in 30min |
AP 20
AP 20
| Service life | Up to 1200 Charge Cycles |
| Weight (kg) | 1.3 kg |
| Energy capacity (wh) | 144 wh |
| Charging time (min) | To 80% in 25min |
| Service life | Weight (kg) |
| Up to 1200 Charge Cycles | 1.3 |
| Energy capacity (wh) | Charging time (min) |
| 144 | To 80% in 25min |
ONE BATTERY FOR MAXIMUM VERSATILITY
The powerful ALLPRO batteries are compatible with more than 80 tools in our lineup, including all devices in the AP system. This reduces system complexity and makes it easier to manage your battery-powered tool fleet across a wide range of applications.
ONE BATTERY FOR MAXIMUM VERSATILITY
The powerful ALLPRO batteries are compatible with more than 80 tools in our lineup, including all devices in the AP system. This reduces system complexity and makes it easier to manage your battery-powered tool fleet across a wide range of applications.
COMPARISON OF CHARGERS AND HIGH-SPEED CHARGERS

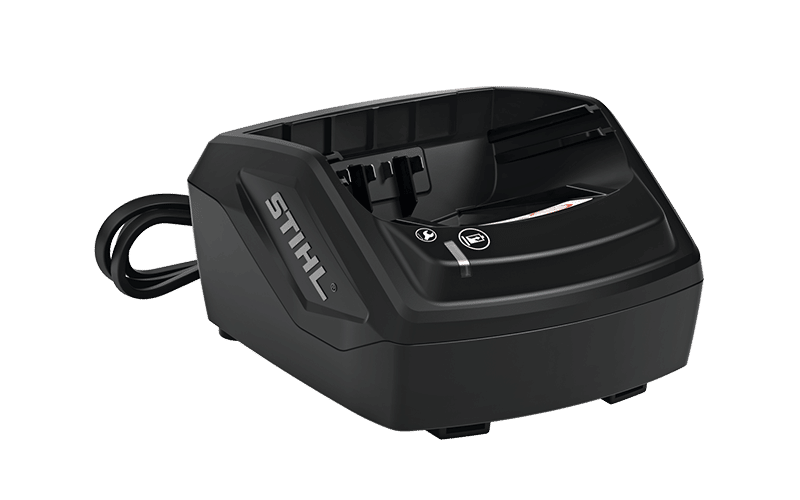

AL 101
CHARGER FOR SINGLE ALLPRO/ AP BATTERY SYSTEM
AL 101
CHARGER FOR SINGLE ALLPRO/ AP BATTERY SYSTEM
| Charging current (A) | 1.6 A |
| Weight (kg) | 68 kg |
| Charging output (W) | 0.7 W |
| Location of use | Workshop / Garage etc |
| Charging current (A) | Charging output (W) |
| 1.6 | 68 |
| Weight (kg) | Location of use |
| 0.7 | Workshop / Garage etc |
AL 301
FAST CHARGER FOR SINGLE ALLPRO/ AP BATTERY SYSTEM
AL 301
FAST CHARGER FOR SINGLE ALLPRO/ AP BATTERY SYSTEM
| Charging current (A) | 6.5 A |
| Weight (kg) | 276 kg |
| Charging output (W) | 1.1 W |
| Location of use | Workshop / Garage etc |
| Charging current (A) | Charging output (W) |
| 6.5 | 276 |
| Weight (kg) | Location of use |
| 1.1 | Workshop / Garage etc |
AL 501
SUPER FAST CHARGER FOR SINGLE ALLPRO/ AP SYSTEM BATTERY
AL 501
SUPER FAST CHARGER FOR SINGLE ALLPRO/ AP SYSTEM BATTERY
| Charging current (A) | 12 A |
| Weight (kg) | 1.3 kg |
| Charging output (W) | 510 W |
| Location of use | Workshop / Garage etc |
| Charging current (A) | Charging output (W) |
| 12 | 510 |
| Weight (kg) | Location of use |
| 1.3 | Workshop / Garage etc |
AL 1802 MO
DUAL FAST CHARGER FOR ALLPRO/ AP SYSTEMS
AL 1802 MO
DUAL FAST CHARGER FOR ALLPRO/ AP SYSTEMS
| Charging current (A) | 42 A (SEQUENTIAL) |
| Weight (kg) | 7.2 kg |
| Charging output (W) | 1.785 W |
| Location of use | Workshop, vehicle, places of use (IPX4) |
| Charging current (A) | Charging output (W) |
| 42 (SEQUENTIAL) | 1.785 |
| Weight (kg) | Location of use |
| 7.2 | Workshop, vehicle, places of use (IPX4) |
FREQUENTLY ASKED QUESTIONS
(1) Comparison with AP 300.0 P(C) and AP 300 S.
(2) Time taken to reach 80% charge at ambient/battery temperatures of 25–40 °C when used with the AL 1802 MO. Applies to ALLPRO batteries AP 100.0 P, AP 200.0 P and AP 300.0 P(C).
(3) Up to 3,000 cycles without noticeable loss of performance; can still be used thereafter. Applies only to ALLPRO batteries AP 100.0 P, AP 200.0 P and AP 300.0 P(C).
(4) IPX5 protection applies only to ALLPRO batteries AP 100.0 P, AP 200.0 P and AP 300.0 P(C). The ALLPRO batteries AP 20.1 and AP 30.1 are IPX4-certified.
